ASTM C35300 Lead Brass Seamless Tubes For Paper Maker Pipe And Water Supply
1. Description
ASTM C35300 lead brass has good ductility, deep drawing performance, excellent cutting performance, and high antifriction performance. It is used for clock structure and parts of automobile and tractor.
ASTM C35300 Lead brass seamless tube has good corrosion resistance, often used for heat exchanger, shower room water tube, paper pipe, various water supply and drainage pipes.
2. Chemical composition
Zn:Remain |
(Pb)1.5~2.5 |
(Al)≤0.5, |
(Fe)≤0.15, |
(Sb)≤0.005, |
(P)≤0.01, |
(Bi)≤0.002, |
(Cu)60.0~63.0, |
Impurity%≤0.75 |
3. Mechanical properties
4. Standard comparison
Category | China | US | UK | Germany | Japan | ||
GB | ASTM | CDA | BS | DIN | Digital system | JIS | |
Leaded brass | HPb60-2 | C36000 | Cz120 | C3713 | |||
C3604 | |||||||
HPb59-2 | C35300 | C3771 | |||||
HPb59-1 | C37800 | Cz122 | CuZn39Pb2 | 2.0380 | C3710 | ||
HPb58-2.5 | C38000 | Cz121 | CuZn39Pb3 | 2.0401 | C3603 |
5. OD table and tolerance
T mm OD mm | 0.15--0.2 | 0.2--0.3 | 0.3--0.5 | 0.5--0.8 | 0.8--1.2 | 1.2--1.8 | 1.8--2.5 | 2.5--3 | 3--4 |
2.5--5 | √ | √ | √ | ||||||
6--10 | √ | √ | √ | √ | √ | ||||
11--15 | √ | √ | √ | √ | √ | ||||
16--20 | √ | √ | √ | √ | |||||
20--25 | √ | √ | √ | √ | √ | ||||
25--35 | √ | √ | √ | √ | √ | ||||
35--45 | √ | √ | √ | √ | √ | √ | |||
45--55 | √ | √ | √ | √ | √ | √ |
outside diameter | Average tolerance | |
General (±mm) | high(±mm) | |
3--15 | 0.09 | 0.05 |
15--25 | 0.1 | 0.06 |
25--50 | 0.15 | 0.08 |
6. Wall Thicknese and tolerance
wall thickness | Average tolerance | |
General(mm) | high(mm) | |
0.2--0.5 | ±0.02--0.05 | ±0.01--0.03 |
0.5--0.8 | ±0.05--0.08 | ±0.02--0.05 |
0.8--1.5 | ±0.08--0.15 | ±0.05--0.12 |
1.5--2.5 | ±0.15--0.25 | ±0.12--0.2 |
2.5--4 | ±0.25--4 | ±0.2--0.3 |

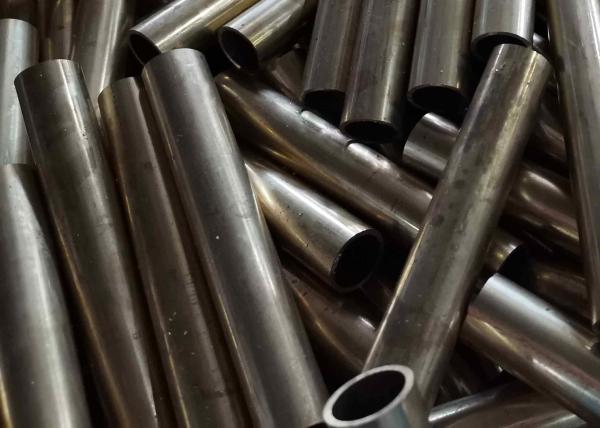

7. Details picture
![]() |
