    Critical Boiler ASTM A213 TP317 Seamless Stainless Tubes

    Ask Lasest Price
    Brand Name : FRANK STEEL
    Model Number : ASTM A213 TP317
    Certification : DNV / LR / BV
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1000 Ton per 30 days
    Delivery Time : about 30 work days
    • Product Details
    • Company Profile

    Critical Boiler ASTM A213 TP317 Seamless Stainless Tubes

    ASTM A213 TP317 Stainless Steel Tubes For High-Temperature And High-Pressure Superheaters and Reheaters

    1. Description

    ASTM A213 TP317 is a very mature steel in stainless steel seamless steel pipe. The steel is austenitic stainless steel containing more Cr, Ni and mo. Compared with 316L, 317L steel has good seawater resistance and SCC resistance. For chemical ships, chemical products reactor and other chemical equipment requiring high corrosion resistance.


    Because of the addition of Mo, the corrosion resistance and high temperature resistance of the steel pipe are greatly improved. High temperature resistance can reach 1200-1300 degrees, and can be used under the condition of caucus. At the same time, the stainless steel seamless pipe has good processing characteristics such as bending and welding process performance. This makes the steel tube can be used in the high-temperature superheater, high-temperature reheater, high-temperature section of platen superheater, high-temperature and high-pressure pipe fittings and other components of large-scale power generation boiler with large manufacturing pressure parameters, which are close to critical or supercritical. In a word, the stainless steel seamless pipe is widely used in power industry, chemical industry and steel industry.

    The ASTM A213 TP317 stainless steel seamless steel pipe produced and exported by our company can be painted on the surface, threaded at both ends, chamfered, and the two ends of the steel pipe can be provided with a pipe cap protector. We use a variety of export packaging methods to ensure the safe transportation of products. Our stainless steel seamless steel pipe products are of good quality and various materials meet the different needs of customers. Our products are sold well all over the world, widely used in many fields, and have been praised and satisfied by customers.

    2. Chemical Composition

    Element List
    America standardEuropean standardC % maxMn % maxP % maxS % maxSi % maxCr %Ni %Mo%Others
    TP3161.44010.0802.00.0450.031.0016.00-18.0011.00-14.002.00-3.00-
    TP316L1.44040.0352.00.0450.031.0016.00-18.0010.00-14.002.00-3.00-
    TP316Ti1.45710.0802.00.0450.030.7516.00-18.0010.00-14.002.00-3.00Ti:5X(C+N)-0.70
    TP317/0.0802.00.0450.031.0018.00-20.0011.00-15.003.00-4.00-
    TP317L1.44380.0352.00.0450.031.0018.00-20.0011.00-15.003.00-4.00-
    TP3211.45410.0802.00.0450.031.0017.00-19.009.00-12.00-Ti:5X(C+N)-0.70
    TP321H/0.04-0.102.00.0450.031.0017.00-19.009.00-12.00-Ti:4X(C+N)-0.70
    TP3471.45500.0802.00.0450.031.0017.00-19.009.00-13.00-Nb:10XC-1.1
    TP347H/0.04-0.102.00.0450.031.0017.00-19.009.00-13.00-Nb:8XC-1.1



    3. Physical Properties

    Grade of steel
    China(GB)China(GB)America
    AISI(ASTM)
    JIS(Germany)
    Old GradeNew Grade(Japan)DIN17006DIN17007
     0Cr17Ni12Mo2TP316/ 06Cr17Ni12Mo2316/S31600SUS316X5CrNiMo17-12-2
    00Cr17Ni14Mo2TP316L/ 022Cr17Ni12Mo2316L/S31603SUS316LX2CrNiMo18-14-3
    0Cr19Ni13Mo3TP317/ 06Cr19Ni13Mo3317/S31700SUS317X5CrNiMo11-13-3
    00Cr19Ni13Mo3TP317L/ 022Cr19Ni13Mo3317L/S31703SUS317LX2CrNiMo18-16-4
    0Cr18Ni10TiTP321/ 06Cr18Ni11Ti321/S32100SUS321X6CrNiTi18-10
    0Cr18Ni11NbTP347/ 06Cr18Ni11Nb347/S34700SUS347X12CrNiNb18-10

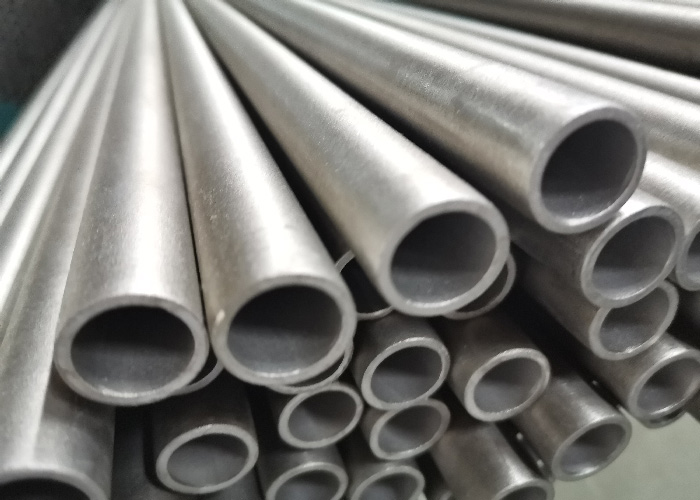

    4. Details Picture
