    1200mm 150LB Double Eccentric Butterfly Valve

    Ask Lasest Price
    Brand Name : FRANK STEEL
    Model Number : Classes: 150--600LB
    Certification : DNV / LR / BV
    Price : USD negotiation per pcs
    Payment Terms : T/T
    Supply Ability : 100 per 30 days
    Delivery Time : about 30 work days
    • Product Details
    • Company Profile

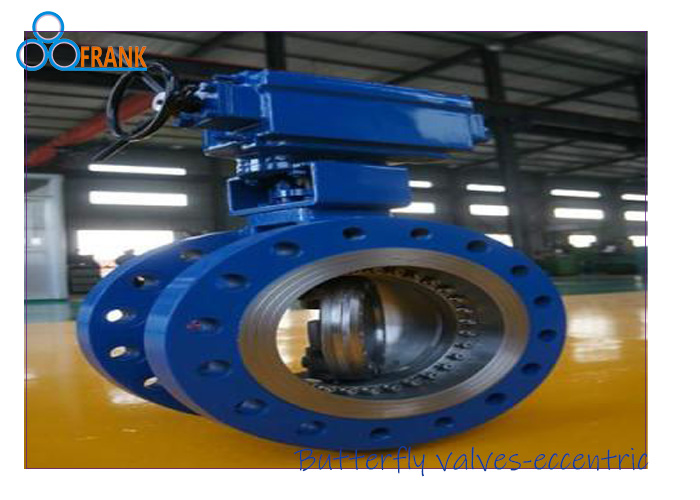

    1200mm 150LB Double Eccentric Butterfly Valve

    1. Description


    Double eccentric butterfly valve
    API609
    Sizes: 2˝∽48˝ ( 50mm∽1200mm )
    Classes: 150--600LB
    Material:Carbon, stainless, Alloy, Nickel alloy steel


    2. Feature


    Wafer, lug ,flange
    Resilient or metal seated
    Tightly shut off
    Bi-directional service
    Blow-out proof shaft
    Double block and bleed
    Available for high and moderate pressure fluid service


    3. Product features and Application


    shaft is behind the butterfly plate surface. This kind of eccentricity makes the contact surface of butterfly plate and valve seat be the sealing surface, which fundamentally overcomes the inherent defects of the middle line butterfly valve, and thus eliminates the possibility of internal leakage at the upper and lower intersection points between the valve stem shaft and the sealing valve seat. Another eccentricity refers to that the center of the valve body's water hole deviates from the shaft center of the valve stem, that is, the valve stem shaft divides the butterfly plate into more parts on one side and two parts on the other side. This kind of eccentricity can make the butterfly plate quickly break away from or close to the valve seat during the opening and closing process, reduce the stroke friction between the butterfly plate and the sealing valve seat, reduce the wear, reduce the opening and closing torque, and prolong the service life of the valve seat.
    It is mainly used for water plant, power plant, steel plant smelting, chemical industry, water source spring engineering, environmental facilities construction and other system drainage, especially for waterway pipeline, as regulating and intercepting equipment. Compared with the center line butterfly valve, double eccentric butterfly valve is more resistant to high pressure, longer service life and good stability.
